TMEP _ Manual Expanding Mandrel

DESCRIPTION

TMEP mandrels are designed to clamp workpieces in between centrers with a flat surface on the arbor for a driving system.

APPLICATION

  • Turning, milling, hobbing, shaving, grinding, and inspection

TECHNICAL FEATURES

  • Workpieces range: 14,7 – 101,7 mm
  • Expansibility: 1 – 2 mm
  • Attachment: In between centers
  • Actuation: Manual
  • While tightening the nut connected to the sleeve, this one will move axialy on the tapered arbor untill the part is clamp

ADVANTAGES

  • Accuracy: Concentricity ≤ 10µ
  • Quick change of sleeves during change over

Description

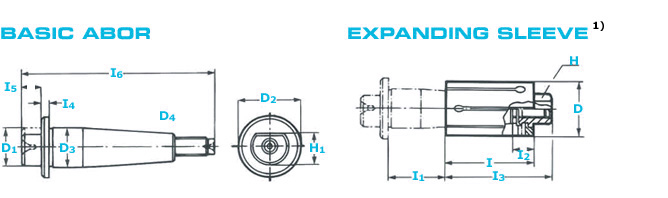

item detail Measurements in mm
Clamping area D1 D2 D3 H1 I4 I5 I6 expanding sleeves
TMEP-1 14,7-19,7 13 23 15 11 6 8 95 more
TMEP-2 19,7-24,7 18 30 20 16 6 8 95 more
TMEP-3 24,7-29,7 20 36 24 18 6 18 125 more
TMEP-4 29,7-34,7 20 42 28 18 6 18 125 more
TMEP-5 34,7-39,7 30 48 32 26 9 22 160 more
TMEP-6 39,7-44,7 30 55 37 26 9 22 160 more
TMEP-7 44,7-54,7 35 62 42 31 9 24 200 more
TMEP-8 54,7-64,7 35 72 52 31 9 24 200 more
TMEP-9 64,7-82,7 55 82 62 50 9 24 270 more
TMEP-10 81,7-101,7 55 95 75 50 9 24 270 more

1) The sleeve will be delivered complete with the screw
