TMCMN _ Expanding Mandrel

DESCRIPTION

The TMCMN is also used to clamp workpieces with blind bores or on short section of the workpiece

APPLICATION

  • Turning, milling, grinding and inspection

TECHNICAL FEATURES

  • Workpieces range: 5,5 – 79,7 mm
  • Expansibility: 0,5 – 1 mm
  • Attachment: Morse taper
  • Actuation: Manual
  • This mandrel has a built-in workpiece stop which positions the workpiece axially.

ADVANTAGES

  • Accuracy: Concentricity ≤ 10µ
  • Quick change of sleeves during change over

Description

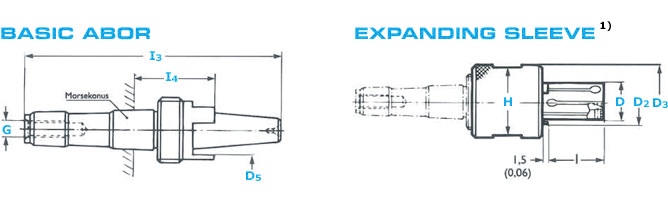

item detail Measurements in mm
Clamping area morse taper I3 I4 D5 G expanding sleeves
TMCMN-1X3 5,5-7,5 3 126 34 8,5 M12 more
TMCMN-1X4 4 149 35,5 M16
TMCMN-2X3 7,5-9,5 3 134,5 38,5 10,5 M12 more
TMCMN-2X4 4 157,5 40 M16
TMCMN-3X3 9,5-12 3 139,5 39,5 13,2 M12 more
TMCMN-3X4 4 162,5 41 M16
TMCMN-4X3 12-15 3 147,5 41,5 16 M12 more
TMCMN-4X4 4 170,5 43 M16
TMCMN-5X3 14,5-19,5 3 152,5 42,5 21 M12 more
TMCMN-5X4 4 175,5 44 M16
TMCMN-6X3 19,5-25 3 158,5 42,5 26 M12 more
TMCMN-6X4 4 181,5 44 M16
TMCMN-7X3 24,7-29,7 3 175 53,5 31 M12 more
TMCMN-7X4 4 198 55 M16
TMCMN-8X4 29,7-34,7 4 201,5 55 36 M16 more
TMCMN-9X4 34,7-39,7 4 208 55 41 M16 more
TMCMN-10X4 39,7-44,7 4 213,5 55 46 M16 more
TMCMN-11X4 44,7-54,7 4 237 60 55,5 M16 more
TMCMN-12X4 5,5-7,5 4 149 35,5 8,5 M16 more
TMCMN-13X4 5,5-7,5 4 149 35,5 8,5 M16 more

1) The sleeve will be always delivered with the screw
