TMCM _ Manual Expanding Mandrel

DESCRIPTION

TMCM manual expanding mandrels are designed for spindle Morse taper mounting.

The workpiece is positioned axially either by a locator or a spacer.

APPLICATION

  • Turning, milling, grinding and inspection.

TECHNICAL FEATURES

  • Workpieces range: 14,7 – 82,7 mm
  • Expansibility: 1 – 2 mm
  • Attachment: Morse taper
  • Actuation: Manual
  • Screw the driving screw with a key

ADVANTAGES

  • Accuracy: Concentricity ≤ 10µ
  • Quick change of sleeves during change over

Description

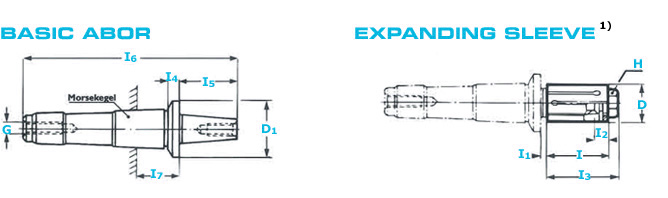

Basic arbor Measurements in mm
item detail Clamping area morse taper D1 I4 I5 I6 I7 G Expanding sleeve
TMCM-1X3 14,7-19,7 3 24,5 29 115 5 M12 more
TMCM-1X4 14,7-19,7 4 32 29 138 6,5 M16
TMCM-2X3 19,7-24,7 3 28 5 32 123 10 M12 more
TMCM-2X4 19,7-24,7 4 32 32 141 6,5 M16
TMCM-3X3 24,7-29,7 3 33 8 38 132 13 M12 more
TMCM-3X4 24,7-29,7 4 33 7 38 154 13,5 M16
TMCM-4X4 29,7-34,7 4 38 7 41 157 13,5 M16 more
TMCM-5X4 34,7-39,7 4 43 8 50 167 14,5 M16 more
TMCM-6X4 39,7-44,7 4 48 9 50 168 15,5 M16 more
TMCM-7X4 44,7-54,7 4 58 9 67 185 15,5 M16 more
TMCM-8X4 54,7-64,7 4 68 12 75 196 18,5 M16 more
TMCM-9X4 64,7-82,7 4 86 14 85,5 208,5 20,5 M16 more

1) The sleeve will be always delivered with the screw
