TMASIT _ Expanding Mandrel

DESCRIPTION

TMASIT is suitable for medium and large scale standard production batches.

APPLICATION

  • Turning, taillage, grinding, and inspection

TECHNICAL FEATURES

  • Workpieces range: 18 – 131 mm
  • Expansibility: 0,8 – 1 mm
  • Attachment: Spindle nose
  • Actuation: Automatic
  • Pull back action of the workpiece

ADVANTAGES

  • Accuracy: Concentricity ≤ 10µ
  • Quick change of segment during change over
  • Maximum exploitation of TMASIT reduces equipment investments. It is a high-performance and profitable mandrel that combines ease-of-use, reliability, durability and low cost.

Description

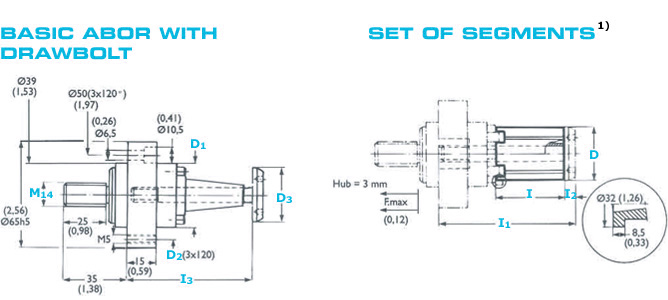

Basic arbor Measurements in mm clamping bolt²)
item detail D1 D2 I3 Max. axial force item detail D3 set of segments
TMIT-0 26g6 54 59 350 daN TMITxxx-01 18-24 more
TMIT-1 39g6 54 67,5 1200 daN TMITxxx-11 24-32 more
TMIT-2 39g6 54 67,5 1500 daN TMITxxx-21 30-45 more
TMIT-3 54g6 100 94 2500 daN TMITxxx-31 45-80 more
TMIT-4 105g6 125 165 3500 daN TMITxxx-41 80-131 more

1) The segments are ground at receipt of the order 2) The driving screws is ground at receipt of the order
