HD_ Face Driver

DESCRIPTION

These face drivers are suited for shaft machining in small or big production batches. In addition to be hold by the chuck soft jaws, they can as well be directly fitted in the spindle’s Morse taper.

APPLICATION

  • Turning and milling

TECHNICAL FEATURES

  • Driving diameter: 7 – 53 mm
  • Machining diameter: 7 – 159 mm
  • Maximum workpiece weight : 105 Kg
  • Driving pins number: 4 – 6
  • Actuation: By pushing the shaft with the tailstock
  • The pressure equalization on the driving pins is done using a plastic ring by elastic distortion, which allows a 5° angle of the end workpiece’s face or a 3 mm axial difference between the individual driving pins.

ADVANTAGES

  • Accuracy: Concentricity ≤ 12µ
  • Quick change of driving pins and center
  • Wide variety of driving pins shapes suitable to all your workpieces
  • Appropriately equalizing the pressure of the driving pins, which is closely related to workpiece center offsetting, makes it possible to drive even rough or inclined workpiece end faces.

Description

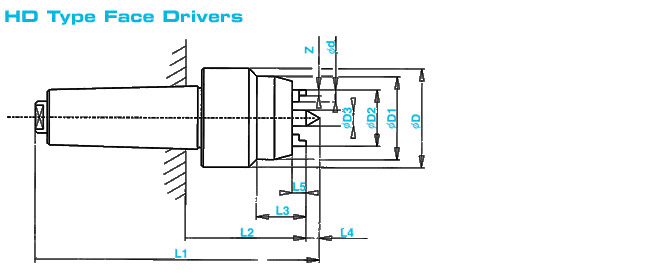

Mounting Type Dimensions in mm
Size Drive Diameter Maximum Mass of Driven Workpiece (kg) Maximum Diameter Variations
MK 2 HD 30 7 – 14 50 7 – 42 more
MK 3
MK 4 HD 31 10 – 17 50 10 – 51 more
MK 5 HD 32 16 – 26 55 16 – 78 more
MK 6
MK 3 HD 33 24 – 38 65 24 – 114 more
MK 4
MK 5
MK 6
MK 4 HD 34 33 – 53 105 33 – 159 more
MK 5
MK 6

All the face drivers are delivered with “form B” drive pins. When placing an order, please specify the order code and quantity.
