COMBI RANGE

April 14, 2017 8:42 pm Published by

Facts COMBI range:

  • Use: for light machining and medium roughing operations for use in copying lathes and NC machines

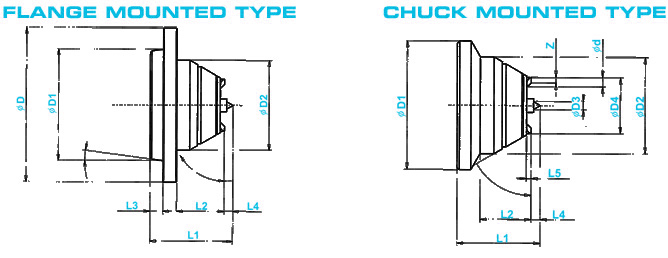

  • The mounting options for this face driver are a flange mounted version or a chuck mounted version (the flange mounted type is suitable for spindle noses size 5” to 15”
  • This face driver has a driving range varying from 12 to 138 mm
  • Can drive workpieces from 70 kg up to 430 kg
  • The pressure equilization on the driving pins is by means of hydraulic oil which permits a 7° angle of the end face of the workpiece, except for model COMBI 18 which uses a plastic ring and has a 5° angle of variation of the end face of the workpiece

Description

Dimensions in mm
Size Drive Diameter Maximum Mass of Driven Workpiece (kg) Maximum Diameter Variations
COMBI 18 12 – 18,5 differs depending on the spring preload 12 – 55,5 more
COMBI 29 22,5 – 29 differs depending on the spring preload 22,5 – 87 more
COMBI 46 33 – 46 differs depending on the spring preload 33 – 138 more
COMBI 70 57 – 70 differs depending on the spring preload 57 – 210 more
COMBI 90 77 – 90 differs depending on the spring preload 77 – 270 more
COMBI 112 99 – 112 differs depending on the spring preload 99 – 336 more
COMBI 138 125 – 138 differs depending on the spring preload 125 – 414 more

Order the drive pins and the spring element separately. When placing an order, please specify the order code and quantity.
